Generation of Surface Models from Segmented, Medical Image Data

Surface models from medical image data typically suffer from artifacts such as staircases and terraces. Our goal is the (automated) generation of accurate and high quality surface models for surgical applications as well as simulations. The resulting surface models are evaluated regarding accuracy, smoothness, triangle quality (skewness), mesh resolution and homogeneity. The mesh generation process is focuses on image data preprocessing as well as postprocessing of the surface meshes (smoothing, remeshing, decimation).

Publications

2013
Interactive Mesh Smoothing for Medical Applications

Tobias Mönch, Kai Lawonn, Christoph Kubisch, Rüdiger Westermann, Bernhard Preim

Interactive Mesh Smoothing for Medical Applications Journal Article

Computer Graphics Forum, 32(8) , pp. 110–121, 2013.

BibTeX

2012
Visually Guided Mesh Smoothing for Medical Applications

Tobias Mönch, Christoph Kubisch, Kai Lawonn, Rüdiger Westermann, Bernhard Preim

Visually Guided Mesh Smoothing for Medical Applications Inproceedings

VCBM 2012 - Eurographics Workshop on Visual Computing for Biology and Medicine, pp. 91–98, Norrköping, 2012.

BibTeX | Links:

2011
Physics-Based Simulation of Vascular Trees for Surgery Simulations

Simon Adler, Tobias Mönch, Rüdiger Mecke

Physics-Based Simulation of Vascular Trees for Surgery Simulations Inproceedings

Second International Workshop on Digital Engineering, pp. 24-30, 2011.

BibTeX | Links:

Optimization of Vascular Surface Models for Computational Fluid Dynamics and Rapid Prototyping

Tobias Mönch, Mathias Neugebauer, Bernhard Preim

Optimization of Vascular Surface Models for Computational Fluid Dynamics and Rapid Prototyping Inproceedings

Second International Workshop on Digital Engineering, pp. 16-23, 2011.

BibTeX | Links:

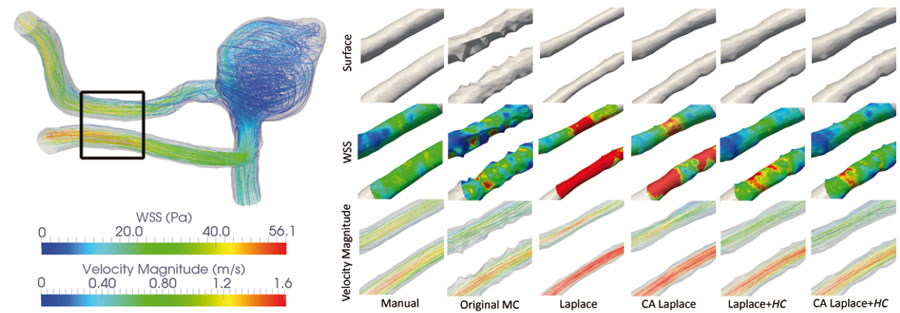

Context-Aware Mesh Smoothing for Biomedical Applications

Tobias Mönch, Rocco Gasteiger, Gabor Janiga, Holger Theisel, Bernhard Preim

Context-Aware Mesh Smoothing for Biomedical Applications Journal Article

Computers and Graphics, 35(4) (4), pp. 755 – 767, 2011.

BibTeX | Links:

2010

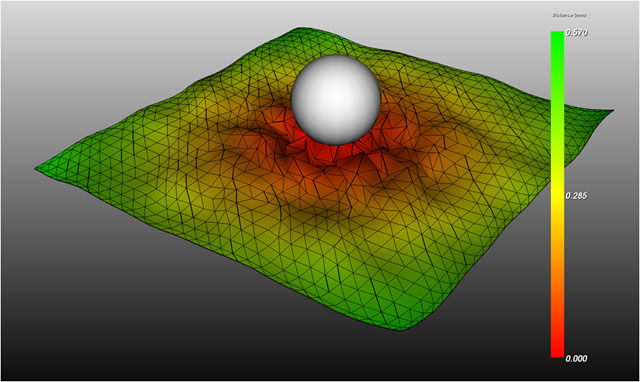

Distance-Aware Smoothing of Surface Meshes for Surgical Planning

Tobias Mönch, Simon Adler, Peter Hahn, Ivo Rössling, Bernhard Preim

Distance-Aware Smoothing of Surface Meshes for Surgical Planning Inproceedings

International Workshop on Digital Engineering (IWDE), pp. 45–51, ACM, Magdeburg, 2010.

BibTeX | Links:

Generation of Smooth and Accurate Surface Models for Surgical Planning and Simulation

Tobias Mönch, Mathias Neugebauer, Peter Hahn, Bernhard Preim

Generation of Smooth and Accurate Surface Models for Surgical Planning and Simulation Inproceedings

Proceedings of SPIE Medical Imaging, pp. to appear, San Diego, California, USA, 2010.

BibTeX | Links:

Vessel surface generation for surgical simulations

Simon Adler, Tobias Mönch, Rüdiger Mecke, Bernhard Preim

Vessel surface generation for surgical simulations Inproceedings

Eurographics Workshop on Visual Computing for Biology and Medicine (VCBM), pp. Poster Abstract, 2010.

BibTeX | Links:

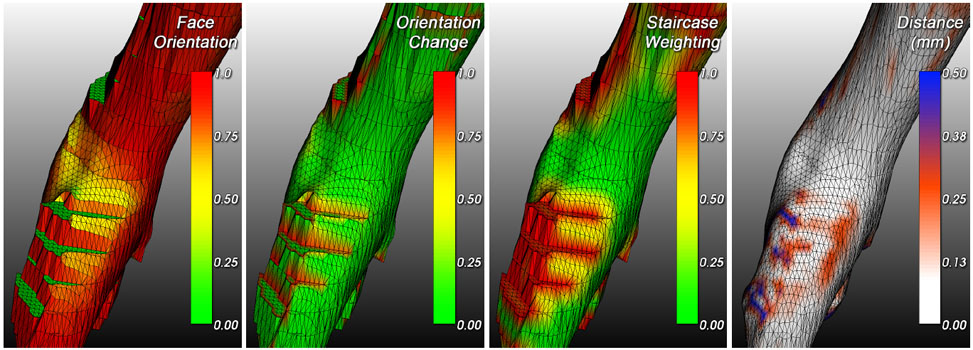

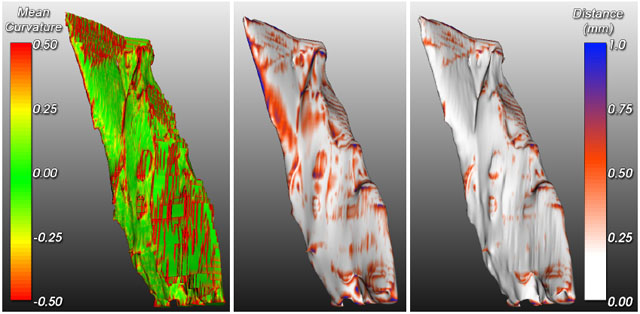

Staircase-Aware Smoothing of Medical Surface Meshes

Tobias Mönch, Simon Adler, Bernhard Preim

Staircase-Aware Smoothing of Medical Surface Meshes Inproceedings

Eurographics Workshop on Visual Computing for Biology and Medicine (VCBM), pp. 83–90, 2010.

BibTeX | Links:

Krankheitsfallspezifische Organmodelle für die interaktive Chirurgiesimulation

Simon Adler, Tobias Mönch, Rüdiger Mecke, Bernhard Preim, Cora Wex, Felix Ritter

Krankheitsfallspezifische Organmodelle für die interaktive Chirurgiesimulation Inproceedings

Schenk, Michael (Ed.): 13. IFF Wissenschaftstage, pp. 319–328, Fraunhofer-Institut für Fabrikbetrieb und -automatisierung Fraunhofer Verlag, 2010.

BibTeX | Links:

2009
Generation of Smooth and Accurate Surface Models for Surgical Planning

Tobias Mönch, Mathias Neugebauer, Bernhard Preim

Generation of Smooth and Accurate Surface Models for Surgical Planning Inproceedings

Proc. of Vision, Modeling, and Visualization (VMV), pp. 381–382, Braunschweig, 2009.

BibTeX | Links:

2007
Reducing Artifacts in Surface Meshes Extracted from Binary Volumes

Ragnar Bade, Olaf Konrad, Bernhard Preim

Reducing Artifacts in Surface Meshes Extracted from Binary Volumes Journal Article

Journal of WSCG, 15 (1-3), pp. 67–74, 2007.

BibTeX | Links:

High-quality Surface Generation for Flow Simulation in Cerebral Aneurysms

Ragnar Bade, Christian Schumann, Santhosh Seshadhri, Gabor Janiga, Torsten Bölke, Özlem Krischek, Martin Skalej, Georg Rose, Dominique Thevenin, Bernhard Preim

High-quality Surface Generation for Flow Simulation in Cerebral Aneurysms Inproceedings

CURAC, pp. 125–128, 2007.

BibTeX | Links:

2006
Comparison of Fundamental Mesh Smoothing Algorithms for Medical Surface Models

Ragnar Bade, Jens Haase, Bernhard Preim

Comparison of Fundamental Mesh Smoothing Algorithms for Medical Surface Models Inproceedings

Simulation und Visualisierung, pp. 289–304, SCS-Verlag, 2006.

BibTeX | Links:

Images

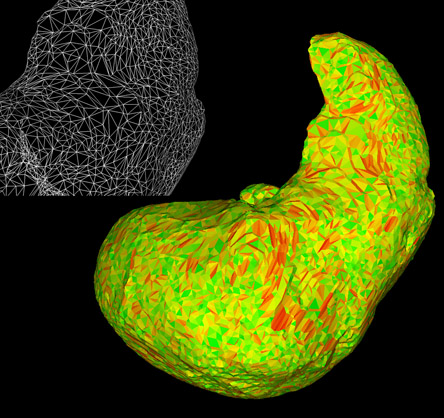

  • A surface model of the liver without any optimization steps, colored by triangle quality (equi-angle skewness).

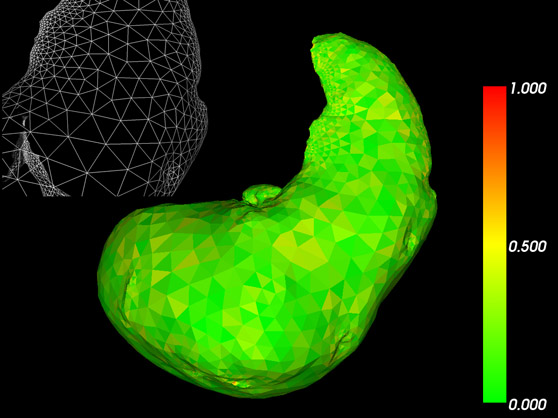

  • A surface model of the liver after mesh smoothing, decimation and remeshing, colored by triangle quality (equi-angle skewness).
  • Splitted view of a tumor model: left – initial surface mesh; right: smooth model after image preprocessing

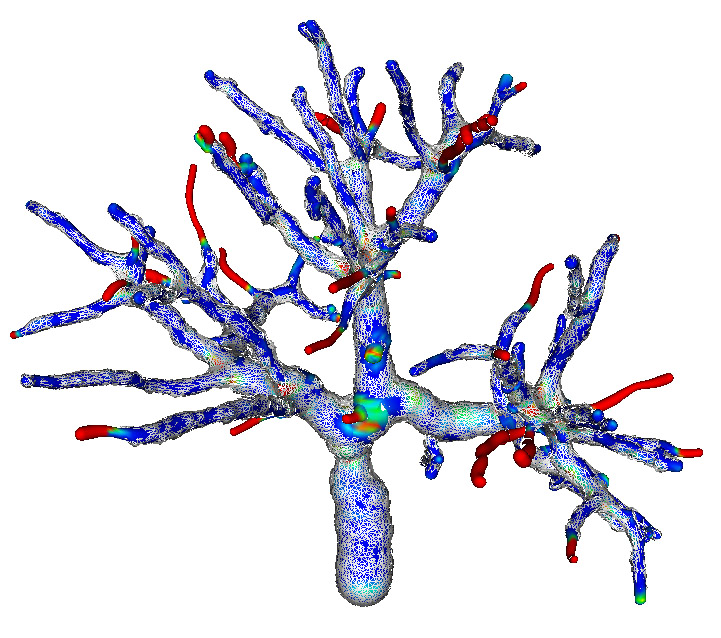

  • Comparison of two vessel representations regarding their local distances.
  • An aneurysm model without any pre-/postprocessing colored by equi-angle skewness.

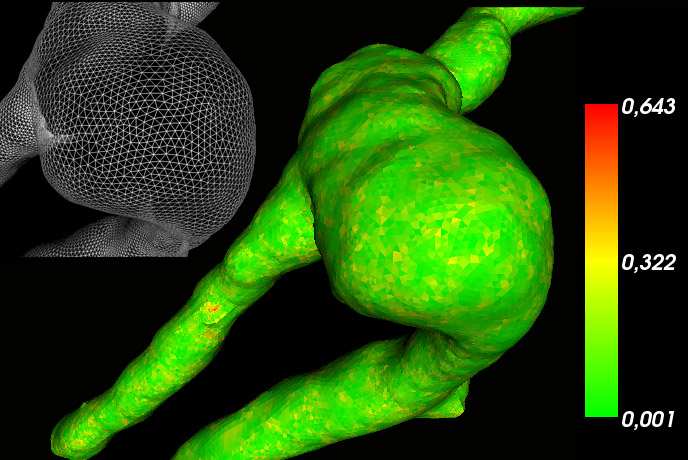

  • An aneurysm model after optimization steps colored by equi-angle skewness.
